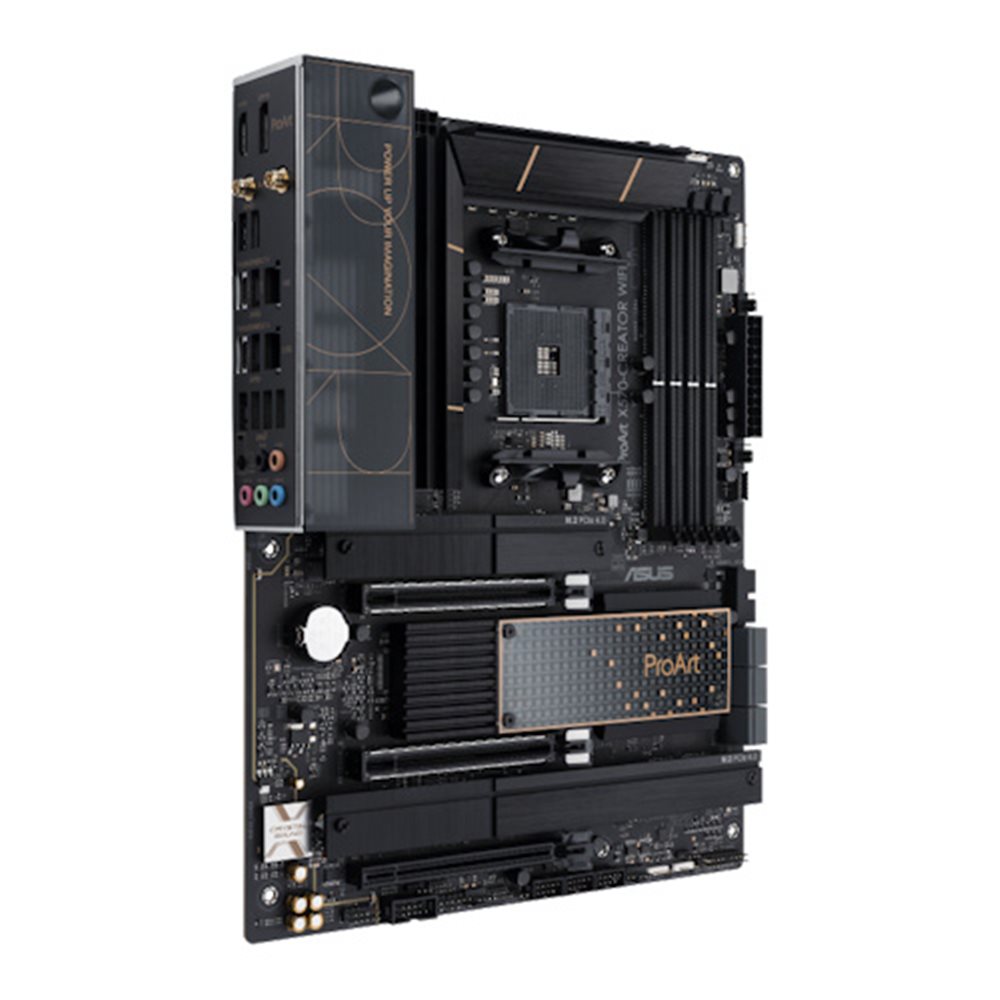

ASUS PROART X570-CREATOR WIFI/ AM4/ ATX

Chipset: AMD X570 Chipset

Rozměrový formát: ATX Form Factor (30.5 cm x 24.4 cm)

Podpora pro procesory:

• AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors
• AMD Socket AM4 for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors

Pozice na paměti: 4x Dual Channel Memory Architecture
Podpora pro paměti:

• AMD Ryzen 5000 Series/ 3000 Series Desktop Processors
• 4 x DIMM, Max. 128GB, DDR4 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz, un-buffered memory
• AMD Ryzen 5000 G-Series and 4000 G-Series Processors
• 4 x DIMM, Max. 128GB, DDR4 DDR4 5100(OC) / 5000(OC) / 4866(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz, un-buffered memory
• AMD Ryzen 2000 Series Desktop Processors
• 4 x DIMM, max. 128GB, DDR4 3600(OC) / 3466(OC) / 3400(OC) / 3200(OC) / 3000(OC) / 2933 / 2800 / 2666 / 2400 / 2133 MHz, un-buffered memory
• AMD Ryzen 3000 G-Series and 2000-G Series Desktop Processors
• 4 x DIMM, max. 128GB, DDR4 3200(OC) / 3000(OC) / 2933 / 2800 / 2666 / 2400 / 2133 MHz, un-buffered memory

Maximální velikost paměťi: 128 GB
Podpora pro paměti typu: ECC Memory (ECC mode)

Grafická karta: (na základě procesoru)

• 1 x DisplayPort (Input only)
• 1 x HDMI port

Zvuková karta: Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC

Síťová karta:

• 1 x Marvell AQtion AQC113CS 10Gb Ethernet
• 1 x Intel I225-V 2.5Gb Ethernet
• Wi-Fi 6E (2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax))
• Bluetooth v5.2

Rozšiřující sloty:

• AMD Ryzen 5000 Series and 3000 Series Desktop Processors
• 2 x PCIe 4.0 x16 (x16 or dual x8)
• AMD Ryzen 5000 G-Serie, 4000 G-Series and 2000 Series Processors
• 2 x PCIe 3.0 x16 (x16 or dual x8)
• AMD Ryzen 2000 G-Series and 3000 G-Series Processors
• 1 x PCIe 3.0 x16 (x8 mode)
• AMD X570 Chipset
• 1 x PCIe 4.0 x16 slot (supports x4 mode)

RAID řadič: RAID 0, 1, 10

SATA: 6x SATA 6Gb/s

M.2: 3x M.2 slot

USB:

• Interní:
• 1 x USB 3.2 Gen 2 connector (support(s) USB Type-C)
• 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
• 3 x USB 2.0 header(s) support(s) additional 6 USB 2.0 ports
• Externí:
• 2 x Thunderbolt 4 USB Type-C port(s)
• 4 x USB 3.2 Gen 2 port(s) (4 x Type-A)
• 4 x USB 3.2 Gen 1 port(s) (4 x Type-A)

Interní porty:

• 2 x Thunderbolt 4 port(s) (2 x USB Type-C) with up to 5V/3A, 15W charging support
• Fan and Cooling related
• 1 x 4-pin CPU Fan header(s)
• 1 x 4-pin CPU OPT Fan header(s)
• 1 x 4-pin AIO Pump header(s)
• 1 x W_PUMP+ header(s)
• 4 x 4-pin Chassis Fan header(s)
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• 1 x 4-pin +12V Power connector
• 3 x M.2 slots (Key M)
• 6 x SATA 6Gb/s ports
• 1 x USB 3.2 Gen 2 connector (support(s) USB Type-C)
• 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
• 3 x USB 2.0 header(s) support(s) additional 6 USB 2.0 ports
• 3 x AURA Addressable Gen 2 header(s)
• 1 x AURA RGB header(s)
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (AAFP)
• 1 x SPI TPM header (14-1pin)
• 1 x 20-3 pin System Panel header with Chassis intrude function
• 1 x Thermal Sensor header

Externí porty:

• 2 x Thunderbolt 4 USB Type-C port(s)
• 4 x USB 3.2 Gen 2 port(s) (4 x Type-A)
• 4 x USB 3.2 Gen 1 port(s) (4 x Type-A)
• 1 x DisplayPort (Input only)
• 1 x HDMI port
• 1 x Intel I225-V 2.5Gb Ethernet port
• 1 x Marvell AQtion AQC113CS 10Gb Ethernet port
• 1 x ASUS Wi-Fi Module
• 5 x Audio jacks
• 1 x BIOS FlashBack button

BIOS: UEFI AMI BIOS, 256 Mb Flash ROM
