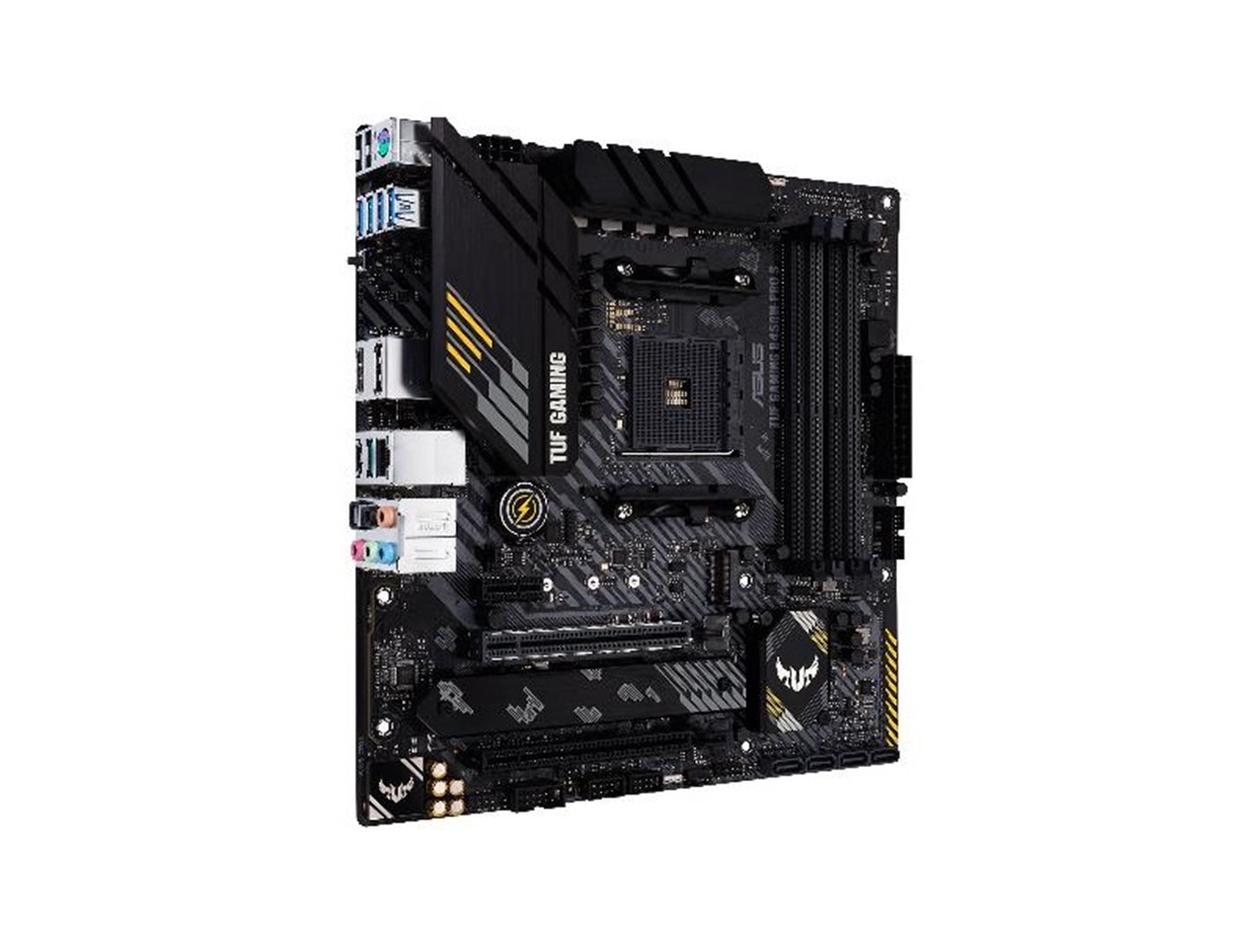

ASUS TUF GAMING B450M-PRO S

Chipset: AMD B450

Rozměrový formát: mATX Form Factor (244 mm x 244 mm)
Podpora pro procesory: AMD AM4 Socket for 3rd/2nd/1st Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics Processors
Patice procesoru: AM4

Pozice na paměti: 4x DDR4 DIMM
Podpora pro paměti:

• 4400(O.C)/3533(O.C)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory

Max.velikost operační paměti: 128 GB
Podpora pro paměti typu: DDR4

• Dual Channel Memory Architecture
• ECC Memory (ECC mode) support varies by CPU

Grafické výstupy: (na základě procesoru)

• 1x DisplayPort 1.2
• 1x HDMI 2.0b

Multi GPU:

• AMD 2-Way CrossFireX Technology

Zvuková karta:

• Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC

Síťová karta:

• Realtek RTL8125B 2.5Gb Ethernet (TUF LANGuard)

Rozšiřující sloty:
3rd/2nd/1st Gen AMD Ryzen™ Processors

• 1 x PCIe 3.0/2.0 x16 (x16 mode)

2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors

• 1 x PCIe 3.0/2.0 x16 (x8 mode)

Athlon™ with Radeon™ Vega Graphics Processors

• 1x PCIe 3.0/2.0 x16 (max at x4 mode)

AMD B450 chipset

• 1x PCIe 2.0 x16 (x4 mode)
• 1x PCIe 2.0 x1

RAID řadič: 0, 1, 10

SATA:

• 4 x SATA 6Gb/s port(s)

M.2:

• 1x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
• 1x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(PCIE 2.0 x4)

USB:

• zadní USB porty ( celkem 8 )
• 2x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®)
• 4x USB 3.2 Gen 1 port(s)(4 x Type-A)
• 2x USB 2.0 port(s)(2 x Type-A)
• přední USB porty ( celkem 6 )
• 2x USB 3.2 Gen 1 port(s)(2 x Type-A)
• 4x USB 2.0 port(s)(4 x Type-A)

Interní porty:

• 1x CPU Fan connector(s)
• 1x CPU OPT Fan connector(s)
• 2x Chassis Fan connector(s)
• 2x Aura RGB Strip Headers
• 1x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
• 2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 1x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
• 1x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(PCIE 2.0 x4)
• 1x SPI TPM header
• 4x SATA 6Gb/s connector(s)
• 1x 24-pin EATX Power connector(s)
• 1x 8-pin EATX 12V Power connectors
• 1x Front panel audio connector(s) (AAFP)
• 1x Clear CMOS jumper(s)
• 1x System panel connector
• 1x COM port header
• 1x Speaker connector

Externí porty:

• 1x PS/2 keyboard/mouse combo port(s)
• 1x DisplayPort
• 1x HDMI
• 1x LAN (2.5G) port(s)
• 2x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C®)
• 4x USB 3.2 Gen 1 (blue) Type-A
• 2x USB 2.0
• 1x Optical S/PDIF out
• 5x Audio jack(s)
• 1x BIOS FlashBack™ Button(s)

Obsah balení:

• User's manual
• I/O Shield
• 2x SATA 6Gb/s cable(s)
• 1x Supporting DVD
• 1x TUF Gaming Sticker
• 1x TUF Certification card(s)
• 1x M.2 SSD screw package(s)
• 1x M.2 Rubber Package(s)

BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
