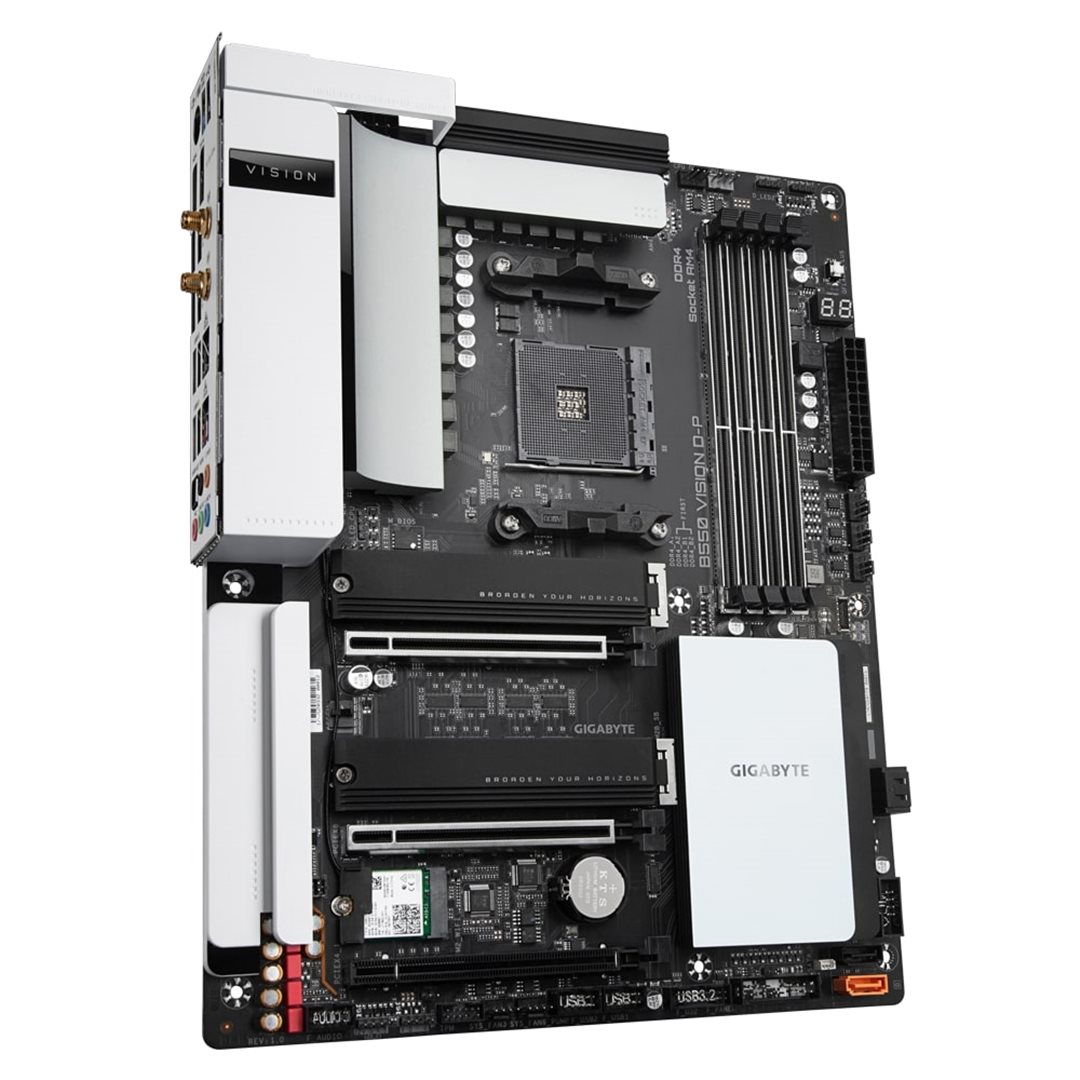

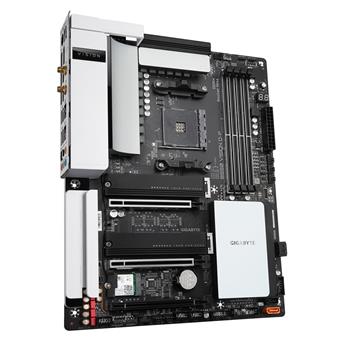

GIGABYTE B550 VISION D-P/ AM4/ ATX

Chipset: AMD B550

Rozměrový formát: ATX Form Factor (305 mm x 244 mm)
Podpora pro procesory: AMD Ryzen™ 5000 Series / 3rd Generation AMD Ryzen™ processors / 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors
Patice procesoru: AM4

Pozice na paměti: 4x DDR4 DIMM
Podpora pro paměti:

• AMD Ryzen™ 5000 series processors: Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
• 3rd Gen AMD Ryzen™ Processors: Support for DDR4 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
• 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors: Support for DDR4 5400(O.C.) / 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules

Max.velikost operační paměti: 128 GB
Podpora pro paměti typu: DDR4

• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules

Grafická karta:

• Integrated Graphics Processor (na základě procesoru)

Multi GPU: AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies

Zvuková karta:

• Realtek® ALC1220-VB codec

Síťová karta:

• Intel® 2.5GbE LAN chip (2.5 Gbit/1000 Mbit/100 Mbit) (LAN1)
• Realtek® 2.5GbE LAN chip (2.5 Gbit/1000 Mbit/100 Mbit) (LAN2)
• Intel® Wi-Fi 6 AX200
• Bluetooth 5

Rozšiřující sloty:

• 1x PCI Express x16 slot (PCIEX16)
• 1x PCI Express x16 slot (PCIEX8)
• 1x PCI Express x16 slot (PCIEX4)

RAID řadič: 0, 1, 10

SATA:

• 4x SATA 6Gb/s

M.2:

• 1x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110
• 1x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110

USB:

• zadní USB porty ( celkem 9 )
• 3x USB 3.2 Gen 1 ports
• 2x USB 3.2 Gen 2 Type-A port
• 2x USB Type-C™ ports
• 2x USB 2.0/1.1 ports
• přední USB porty ( celkem 7 )
• 1x USB Type-C™ port with USB 3.2 Gen 1
• 2x USB 3.2 Gen 1 ports
• 4x USB 2.0/1.1 ports

Interní porty:

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 1x CPU fan header
• 1x water cooling CPU fan header
• 4x system fan headers
• 2x system fan/water cooling pump headers
• 2x addressable LED strip headers
• 2x RGB LED strip headers
• 1x CPU cooler LED strip/RGB LED strip header
• 2x M.2 Socket 3 connectors
• 4x SATA 6Gb/s connectors
• 1x SATA DOM power connector
• 1x front panel header
• 1x front panel audio header
• 1x USB Type-C™ port, with USB 3.2 Gen 1 support
• 1x USB 3.2 Gen 1 header
• 2x USB 2.0/1.1 headers
• 1x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
• 1x serial port header
• 1x Clear CMOS jumper
• 2x temperature sensor headers
• 1x Q-Flash Plus button

Externí porty:

• 1x PS/2 keyboard/mouse port
• 1x DisplayPort In port
• 1x HDMI port
• 2x SMA antenna connectors (2T2R)
• 2x USB 3.2 Gen 2 Type-A ports (red)
• 2x Thunderbolt™ 3 connectors (USB Type-C™ port, with USB 3.2 Gen 2 support)
• 3x USB 3.2 Gen 1 ports
• 2x USB 2.0/1.1 ports
• 2x RJ-45 ports
• 1x optical S/PDIF Out connector
• 5x audio jacks

BIOS: 256 Mb AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Stránka výrobce: https://www.gigabyte.com/Motherboard/B550-VISION-D-P-rev-10
